Description
Product Overview

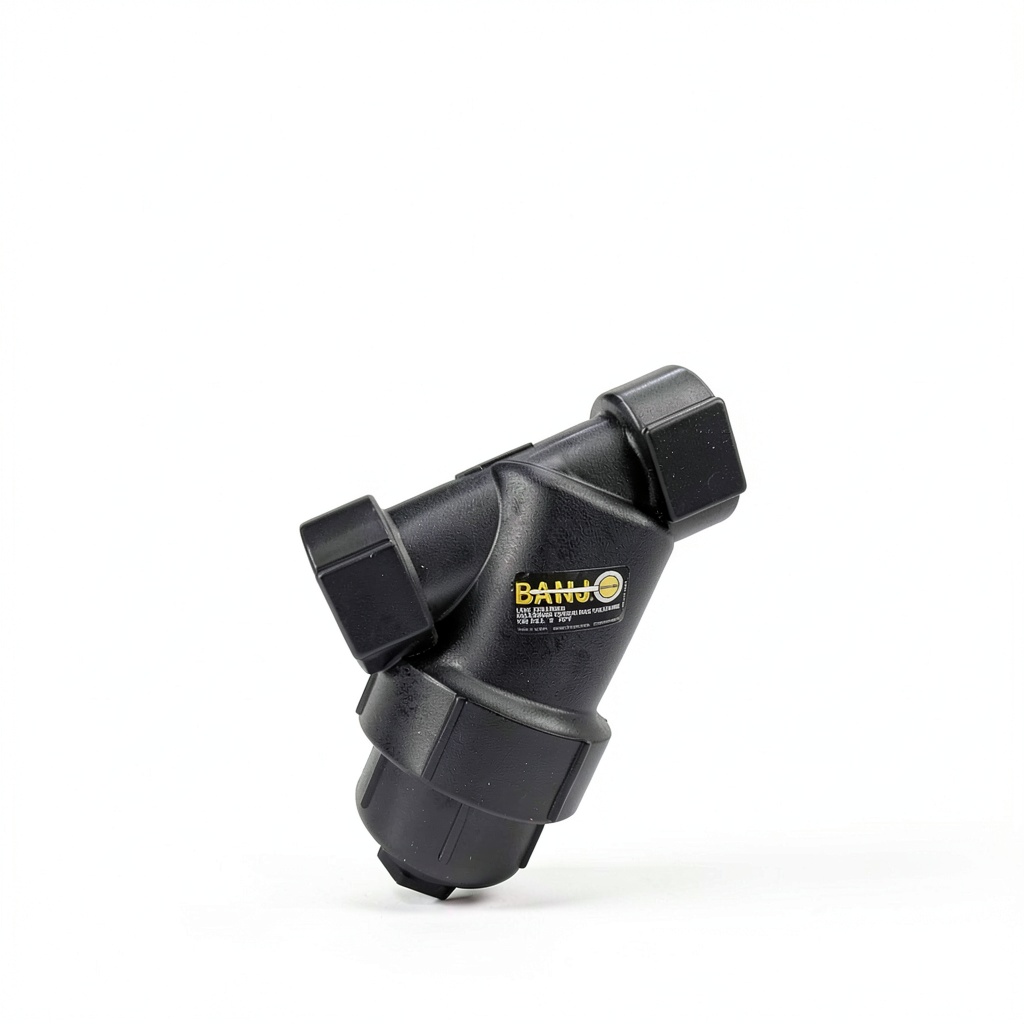

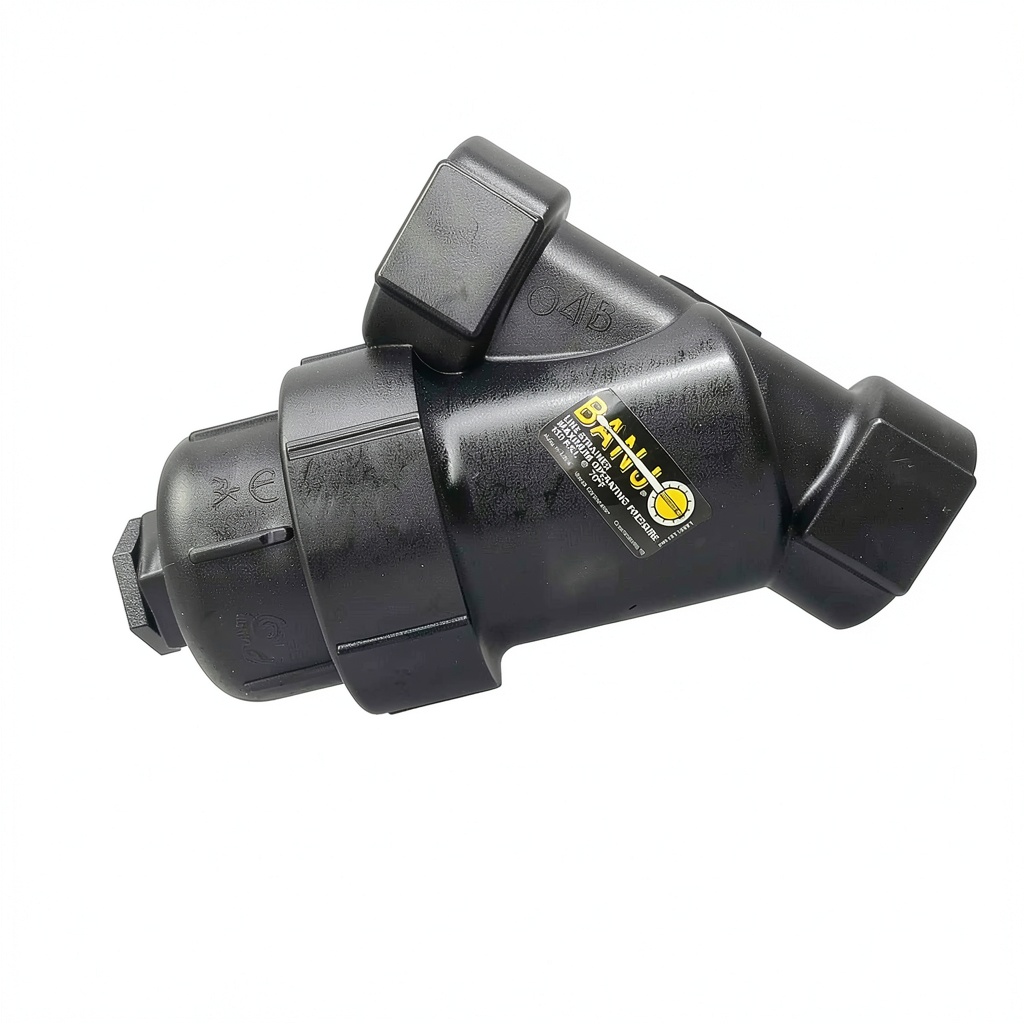

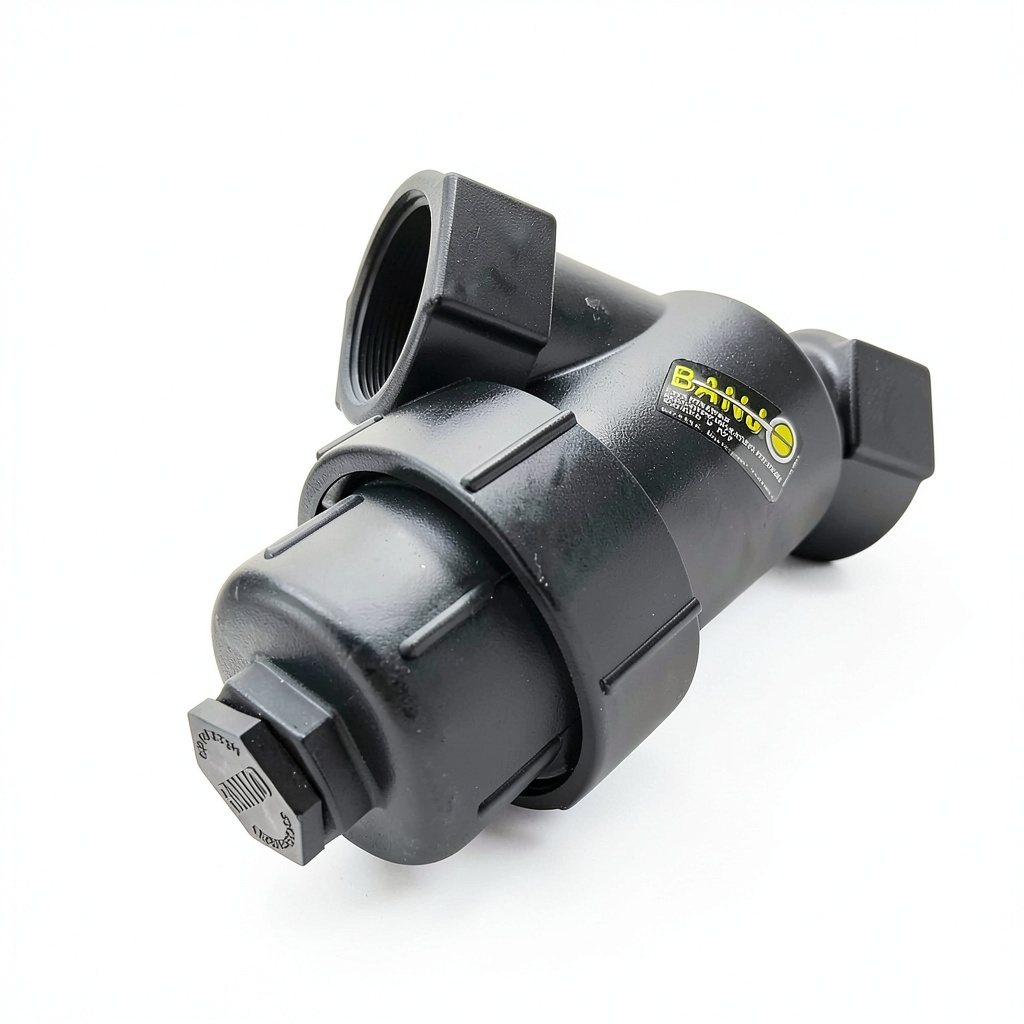

The Banjo LS100-20 Y strainer is engineered for demanding filtration tasks across a wide range of industrial and agricultural applications. Constructed from a high‑impact polypropylene housing, the unit resists corrosion, chemical exposure, and mechanical stress, ensuring a long service life even in harsh environments. The heart of the strainer is a 20‑mesh stainless steel screen that captures fine particles while allowing a steady flow of liquids, reducing the risk of clogging and maintaining system efficiency. With a compact 1 × 1 inch footprint and female NPT connections, the strainer integrates seamlessly into existing pipework without requiring extensive modifications. The design incorporates a Y‑shaped flow path that directs fluid around the screen, providing superior debris removal and pressure stability. In addition to the core components, each package includes a convenient keychain that displays a color‑coded mesh size chart, helping technicians quickly identify the appropriate filter for specific tasks.
The technical specifications of the Banjo LS100-20 Y strainer are detailed to assist engineers in precise system design. The strainer’s overall dimensions measure 7 × 6 × 4 inches, with a weight of approximately 1 lb, facilitating easy handling. The inlet and outlet ports are 1 × 1 inch female NPT, compatible with standard pipe sizes ranging from ½ to 2 inches. The stainless steel screen is fabricated from 304 grade material, offering corrosion resistance and a 20‑mesh count that captures particles down to 850 µm. The strainer is rated for a maximum operating pressure of 200 psi and a temperature range of –40 °C to +120 °C, covering most industrial fluid conditions. Flow capacity is rated at 10 gpm at 100 psi, with a pressure drop of less than 0.5 psi, ensuring minimal impact on system performance. All dimensions and tolerances comply with ASME B16.5 standards for pipe fittings.
Banjo continues to innovate its Y‑strainer product line, exploring advanced materials such as high‑temperature polymers and ceramic mesh options to further expand application possibilities. Upcoming models aim to increase mesh density up to 40 mesh while maintaining low pressure drop, catering to industries that require ultra‑fine filtration, such as pharmaceutical manufacturing and semiconductor cooling. The company also invests in digital tools, offering an online configurator that helps engineers select the optimal strainer size, mesh count, and material based on flow rates, pressure requirements, and fluid characteristics. These forward‑looking initiatives ensure that the Banjo LS100-20 platform remains a cornerstone of reliable filtration technology for years to come.
Usage
Designed for versatility, the LS100-20 Y strainer excels in agricultural irrigation systems, where it protects pumps and valves from sand, rust, and organic debris that can impair performance. In industrial fluid handling, the strainer safeguards compressors, heat exchangers, and filtration units by removing contaminants before they reach sensitive components. The 200 PSI maximum pressure rating allows the device to operate safely under moderate pressure conditions common in water treatment, chemical processing, and cooling water circuits. Installation is straightforward: simply thread the female NPT ends into the corresponding male fittings, tighten to the recommended torque, and verify a leak‑free seal. The compact size makes it suitable for tight spaces, and the Y‑shaped design ensures minimal pressure drop while maintaining high flow rates. Routine maintenance is simplified by the removable screen, which can be inspected, cleaned, or replaced without dismantling the entire system, reducing downtime and maintenance costs.
Regular maintenance of the LS100-20 Y strainer ensures optimal performance and prolongs service life. Inspect the screen at least once per month in high‑solids applications, looking for signs of clogging or corrosion. To clean, remove the strainer from the line, disassemble the housing, and gently brush the stainless steel mesh with a soft nylon brush; avoid abrasive tools that could damage the mesh. For stubborn deposits, soak the screen in a mild detergent solution and rinse thoroughly with clean water before reassembly. Re‑install the strainer using a new thread sealant to maintain a leak‑free connection, and verify torque specifications with a calibrated wrench. Record maintenance activities in a logbook to track filter life and schedule future inspections, which helps prevent unexpected downtime.
Installation of the LS100-20 Y strainer follows a simple three‑step procedure. First, turn off the system and relieve any residual pressure to ensure a safe working environment. Second, apply a compatible thread sealant or PTFE tape to the male NPT threads of the adjoining pipe, then screw the strainer’s female NPT ends onto the fittings, tightening them to the manufacturer‑specified torque of 30 Nm. Finally, open the system, check for leaks, and verify that the flow rate meets design expectations. The included keychain with a mesh size chart serves as a quick reference during installation, allowing technicians to confirm that the selected screen matches the required filtration level.
In a recent case study, a mid‑size agricultural irrigation company replaced conventional screen filters with the Banjo LS100-20 Y strainer across its water distribution network. After installation, the facility reported a 30 % reduction in pump wear and a 15 % increase in water flow efficiency, attributed to the strainer’s low pressure drop and effective debris removal. Maintenance records showed a 40 % decrease in filter replacement frequency, translating to lower labor costs and less downtime during peak irrigation periods. The company also highlighted the convenience of the included mesh size keychain, which allowed field technicians to quickly verify filter specifications without consulting manuals, further streamlining service operations.
Why Choose Us
Choosing the Banjo LS100-20 Y strainer means selecting a product backed by decades of filtration expertise and a commitment to quality that exceeds industry standards. The polypropylene housing is injection‑molded to precise tolerances, eliminating gaps and ensuring a secure fit that resists leaks. The stainless steel screen undergoes a rigorous mesh verification process, guaranteeing consistent 20‑mesh openings that deliver reliable particle capture. Each unit is inspected and tested at the factory for pressure integrity and flow performance before shipment, providing confidence that the strainer will perform as advertised. Banjo also offers responsive technical support and a clear warranty policy, giving customers peace of mind and a single point of contact for any questions or replacement needs. The inclusion of the mesh size keychain further demonstrates attention to detail, helping users maintain optimal filtration without the need for additional reference tools.
Banjo stands behind the LS100-20 Y strainer with a one‑year limited warranty that covers manufacturing defects and material failures. Should any issue arise, customers can contact the dedicated support team via phone or email, providing the product model and serial number for swift assistance. The warranty also includes access to replacement parts, such as additional stainless steel screens, ensuring that the strainer can be kept in optimal condition throughout its service life. Documentation, including installation manuals and maintenance guidelines, is available for download on the Banjo website, offering comprehensive resources for both novice and experienced users.

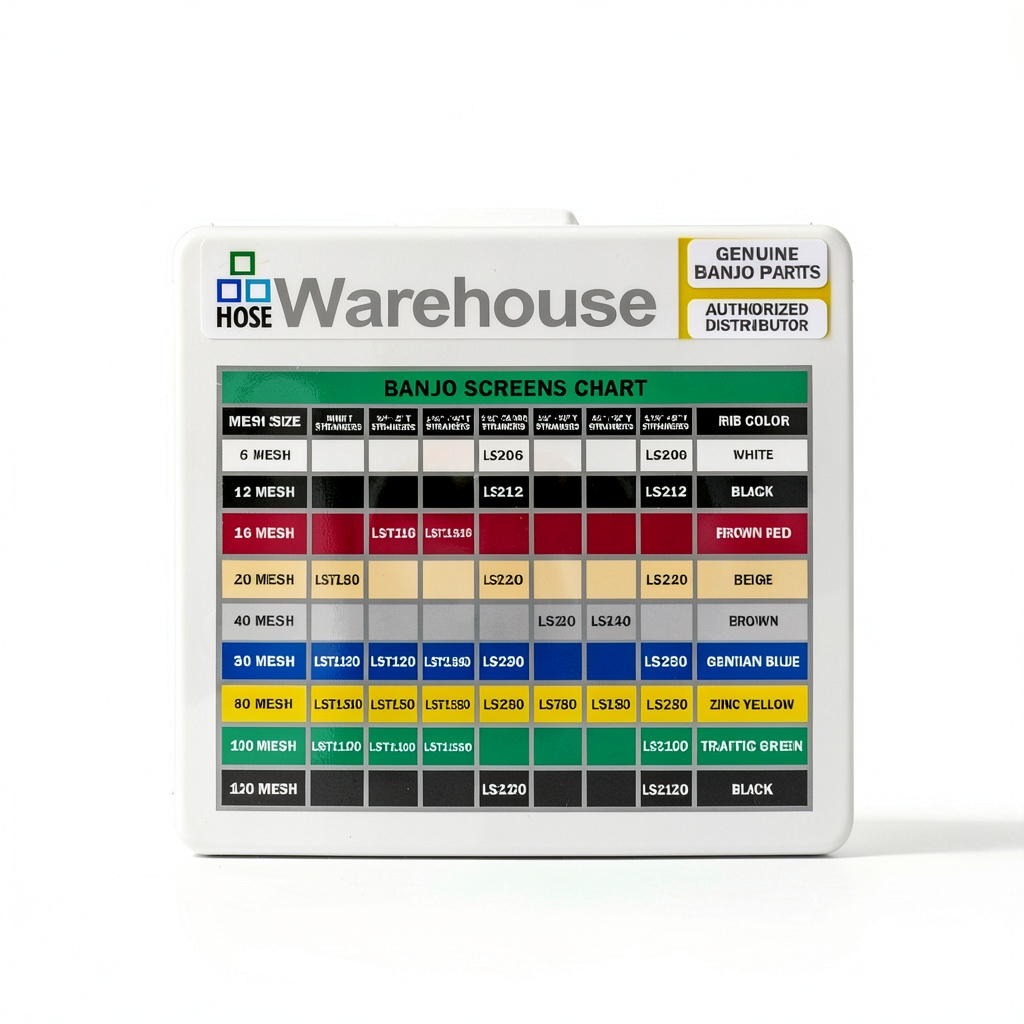

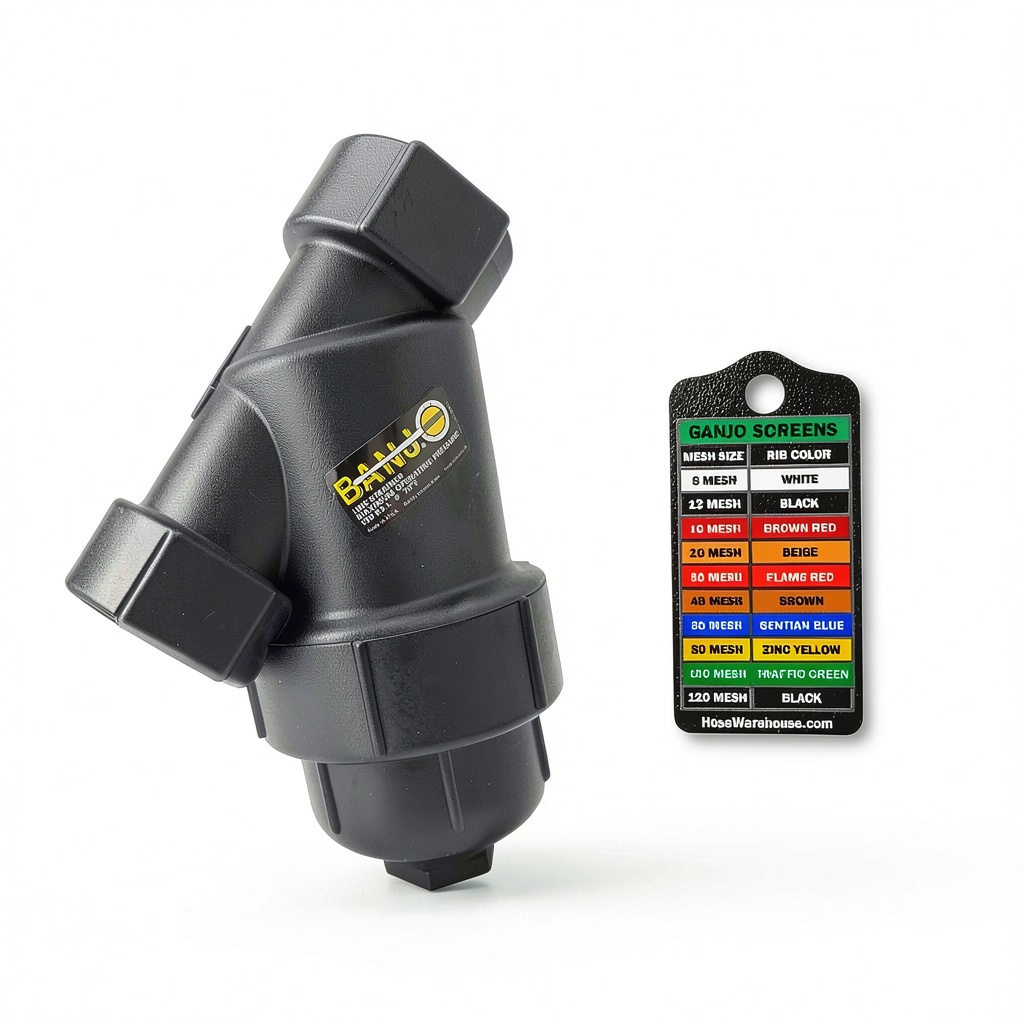

The complimentary keychain included with each LS100-20 unit features a compact color‑coded chart that identifies the mesh size of the stainless steel screen. This visual aid enables quick verification of the filter’s specifications without the need to consult external documents, streamlining field operations and reducing the chance of installing an incorrect screen. The keychain is constructed from durable metal alloy, resistant to rust and wear, ensuring it remains a reliable reference tool throughout the product’s lifespan.
The LS100-20 Y strainer complies with relevant industry standards for pressure vessels and filtration components, including ASTM A240 for stainless steel screens and ISO 9001 quality management certification for Banjo’s manufacturing processes. This adherence to recognized benchmarks assures customers that the product meets rigorous performance and safety criteria, making it suitable for use in regulated environments such as food processing, pharmaceuticals, and water treatment facilities.
Performance testing conducted by Banjo demonstrates that the LS100-20 Y strainer maintains a pressure drop of less than 0.5 psi at a flow rate of 10 gpm, confirming its efficiency in high‑throughput applications. The 20‑mesh screen captures particles down to 850 µm, providing effective protection for downstream equipment while allowing sufficient fluid velocity. These test results are documented in the product data sheet, which is accessible to customers seeking detailed engineering specifications.
For projects requiring specific filtration characteristics, Banjo offers custom screen options that can be ordered alongside the LS100-20 base unit. Customers may select alternative mesh counts ranging from 10 to 40, as well as different screen materials such as brass or titanium, to match the chemical compatibility and particle size requirements of their processes. Customization is facilitated through Banjo’s engineering support team, which provides guidance on optimal screen selection and integration.
The Banjo LS100-20 Y strainer is stocked in major industrial supply warehouses across North America, Europe, and Asia, ensuring rapid delivery to customers worldwide. With a competitive price point of $38.15, the strainer delivers high value without compromising on durability or performance. Bulk ordering options are available for large‑scale installations, offering volume discounts and streamlined logistics.
In summary, the Banjo LS100-20 Y strainer combines robust construction, precise 20‑mesh filtration, and user‑friendly features such as the mesh size keychain to meet the demanding needs of industrial and agricultural fluid systems. Its compact size, high pressure rating, and easy installation make it a versatile solution that enhances system reliability while reducing maintenance costs. Whether retrofitting an existing line or specifying new equipment, this strainer provides a dependable, cost‑effective option for maintaining clean and efficient fluid flow.
To equip your operation with reliable filtration, add the Banjo LS100-20 Y strainer to your inventory today and experience the benefits of superior design, durable materials, and comprehensive support. For technical inquiries, part numbers, or to request a quote for bulk purchases, contact Banjo’s sales department through the online portal or by phone.
The LS100-20 Y strainer is also well suited for chemical processing plants where aggressive solvents and acids are common. Its stainless steel screen resists corrosion from a wide range of chemicals, while the polypropylene housing provides a barrier against chemical attack, ensuring the strainer remains functional even when exposed to harsh fluids. In marine environments, the strainer can be used to protect cooling water loops on shipboard engines, preventing marine growth and sand ingress. Additionally, the unit is compatible with food‑grade pipelines when the stainless steel screen is selected, meeting hygiene standards required for dairy and beverage production. These diverse application possibilities make the LS100-20 a versatile component for any fluid handling system.
To assist customers in the installation process, Banjo provides a high‑definition video tutorial that walks users through each step, from preparing the pipe to verifying a leak‑free seal. The video highlights common pitfalls, such as over‑tightening the NPT connections, and demonstrates the proper technique for removing and cleaning the stainless steel screen. All instructional materials, including the video, PDF manuals, and the mesh size keychain reference guide, are downloadable from the Banjo product page, ensuring that users have immediate access to the information they need for successful deployment.
Key Features
- Durable polypropylene housing resists corrosion and mechanical stress for long‑term service.
- 20‑mesh stainless steel screen captures fine particles while maintaining low pressure drop.
- Compact 1 × 1 inch NPT connections enable easy installation in tight spaces.
- 200 PSI pressure rating supports robust operation in demanding industrial applications.
- Includes a mesh‑size keychain and responsive after‑sales support for quick reference and assistance.
FAQ
What size screen does the LS100-20 use?
The LS100-20 comes with a 20‑mesh stainless steel screen that filters particles down to approximately 850 µm.
Can the strainer handle hot fluids?
Yes, the strainer is rated for temperatures from –40 °C up to +120 °C, making it suitable for most hot‑water and chemical processes.
How do I replace the screen?
Turn off the system, relieve pressure, unscrew the strainer, remove the old screen, insert the new mesh, and reinstall the strainer using fresh thread sealant.
